Product specification and application scope
- Applications:
- Pumping and transfer of abrasive slurries under pressure for:
- Mineral sands stacker lines
- Sand and grasel transfer
- High pressure tailings lines
- Intake and discharge connectors
- Design Features:
- Durable construction with high tensile reinforcement cord
- Allows for compression and rebound
- Inbuilt end connections
- Available with abrasion resistant internal wear liners
- Designed and manufactured to customer requirements
- Properties:
- Nominal bores from 50mm (2") to 1000mm (40") (Custom internal diameters are also available)
- Lengths up to 15m (50ft) (Product specifications are suject to regional variations)
- Operating temperature -35°C to +75°C (-31°F to +167°F)
- Discharge duties only
- Typical bend radius of 12D

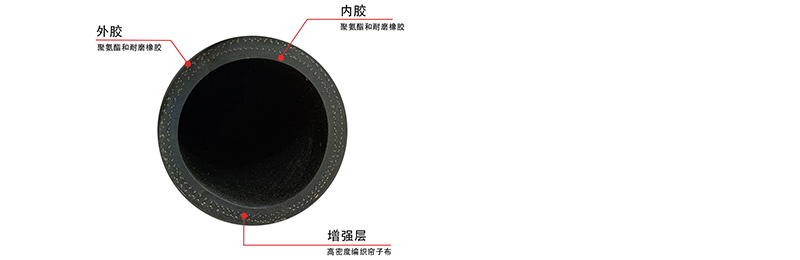

- Construction:
- 1.The soft wall slurry hose is a durable, non-wire hose construction manufactured specifically for discharge applications
- 2.The construction allows for flexibility under pressure and removes the risk of permanent deformation that may occur through mishandling or over-flexing of the hose
- 3.The robust design delivers performance and reliability in the most arduous of mining applications and protects your site asset from early failure due to external damage
